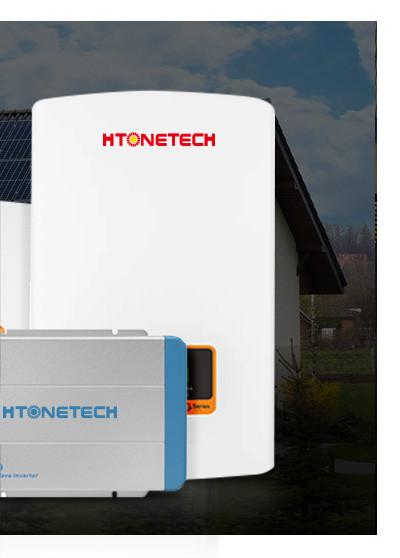

IP65 MPPT Solar Inverter 3 Phase Solar Inverter IEC62109-1

Certification : ISO, CE

Application : Home, Industrial, Commercial

Specification : Normal, 270W*433H*105D(mm)

The Working Environment Humidity : En61000-6-1:2007: En61000-6-3:2007

Safety Gauge / EMC Standard : IEC62109-1 / -2: As3100; Nb / T32004

Grid-Connected Standards : En50438,G83/2as4777VDE0126-1-11ec61727,Nb/T320040~

Design Working Year : > 20 Years

Display Screen : LCD, 2X20z

Communication Interface : RS485.WiFi/GPRS (Optional)

AC Port : IP67 Protection Class Connector

DC Port : Original Factory Mc4 Supporting Terminal

Noise (Typical) : <30 Dba

Protection Level : IP65

The Highest Working Elevation : 4000 Meters

Cooling Way : Natural Convection

Topology : Without a Transformer

Self Consumption : <1W (Night)

Transport Package : Wooden Box

Trademark : htonetech

Origin : China

Supply Ability : 50000pieces/Year

Shipping Cost : To be negotiated| Freight Cost Calculator

After-sales Service : Yes

Warranty : 3year

Condition : New

Contact Now

Product Description

IP65 MPPT Solar Inverter 3 Phase Solar Inverter IEC62109-1

MODEL

HT-M700

HT-M1000

HT-M1500

HT-M2000

HT-M2500

HT-3K-2G-ST

HT-3.6K-2G-ST

HT-5K-2G

HT-10K

HT-15K

HT-20K-HV

HT-40K-HV

New energy power generation mode

photovoltaic power generation

input

Max input power

900 watt

1.2KW

1.8KW

2.4KW

3.0KW

3.5KW

4.2kw

5.8kw

11.5kw

16.5kw

20kw

45kw

Maximum input voltage

450V

500v

600V

1000v

starting voltage

60V

600V

330v

350v

The MPPT voltage range

50-400V

100-500V

200-800v

Maximum input current

10A

18A

15A+15A

18A+18A

18A+18A+18A+18A

Quaintity of MPP / maximum input path

1/1

1/2

2/2

2/4

4/8

output

Rated output power

0.7kw

1KW

1.5KW

2KW

2.5KW

3KW

3.6kw

5kw

10kw

15kw

20kw

40kw

Max output power

0.8kW

1.1KW

1.65KW

2.2KW

2.5KW

3.3KW

4kw

5kw

11kw

15kw

20kw

40kw

Rated power grid voltage

220 / 230V

380v/400v

480v

Grid voltage range from

180 to 270 V (adjustable)

313-470v(adjustable)

384-576v(adjustable)

Rated power grid frequency

50 / 60Hz

Grid phase

single-phase

three-phase

Maximum output current

4.4A

6.1A

9.2A

12.2A

13.9A

15.7A

16A

23.8A

16.7A

25A

48.1A

Output power factor

0.8 ahead...0.8 lag

Maximum measured flow harmonic

TotalTHD <3%

The DC component value of the power grid

<20 mA

Operating frequency range of

47-52Hz or 57-62Hz (adjustable)

Operating frequency range of

47-52Hz or 57-62Hz (adjustable)

The maximum efficiency

96.70%

97.50%

97.80%

98.30%

98.60%

The European efficiency

96.20%

96.80%

97%

97.50%

98.30%

The MPPT efficiency was

99.90%

Protection

DC backconnection protection

YES

Communication short circuit protection

YES

AC-output overcurrent protection

YES

Output overvoltage protection

YES

Protection of insulation impedance

YES

Residual current (RCD) detection

YES

surge protection

YES

Grid-connected monitoring

YES

Island protection

YES

Temperature protection

YES

The Integrated DC switch

selectable

Basic parameter

Size

270W*433H*105D(mm)

339W*585H*172.5D(mm)

430W*613H*269D(mm)

530W*700H*356.5D(mm)

Weight

5.2kg

13.8KG

30kg

58.2kg

FAQ

1. Q: Are you a factory or a trading company?
A :We are a professional Solar Panels Manufacturer in China

2.How can we guarantee the products quality?
A :Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;

3.What products we can supply you?
A :Solar panels,inverter,controller,cable,support frame and other solar power systems

4. Q: Can the products pricing be cheaper?
A :Of course, you will be offered a a very good discount with large quantities.

5.. Q: Can print our company's logo on the pv panels?
A :Yes! And we accept the OEM&ODM orders.
