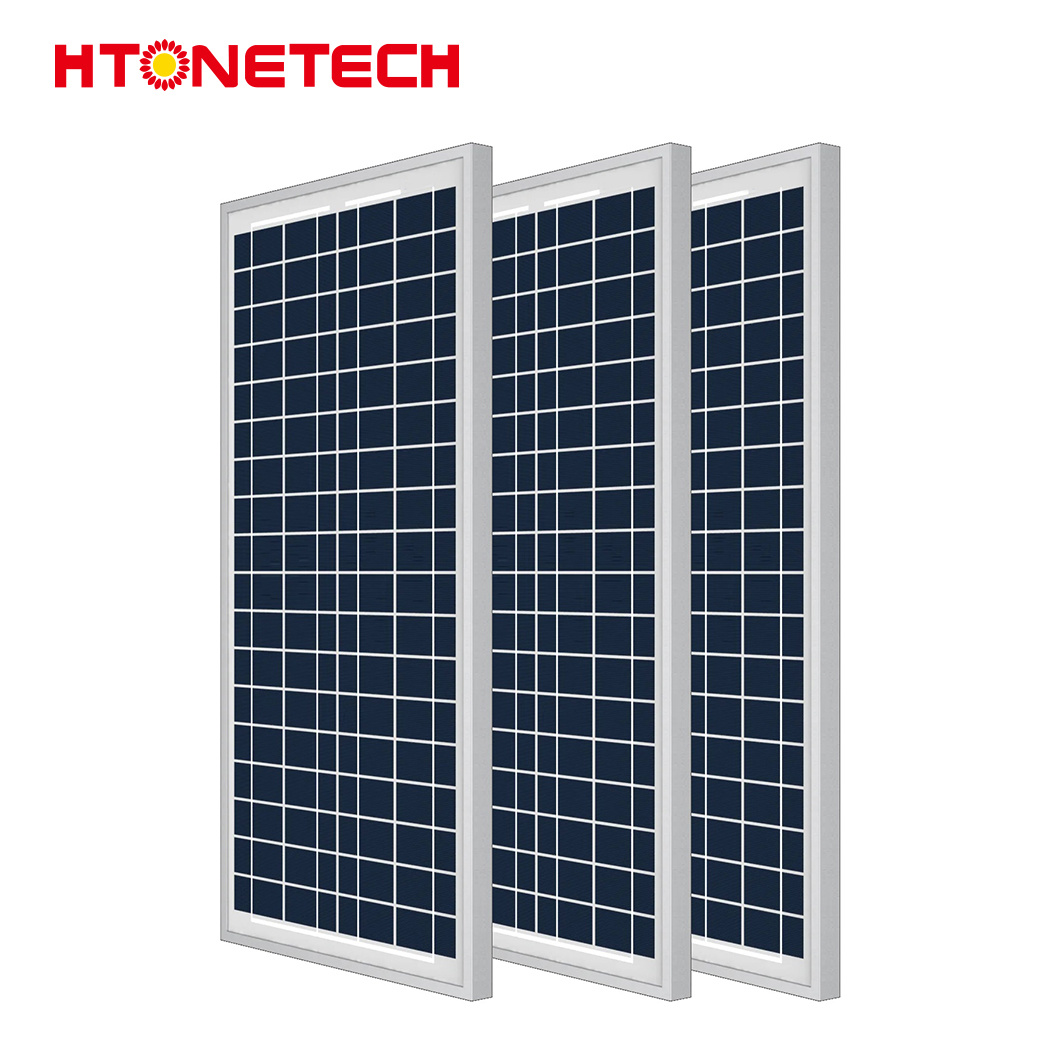

Amorphous Silicon Solar Photovoltaic Panel 158.75mmx158.75mm Cell

Certification : EST, ISO, CB, CE

Model NO. : Polycrystalline Solar Panel

Condition : New

Material : Polycrystalline Silicon

Glass : 3.2mm High Transmission Rate

Panel Efficiency : 14.63%

Cell Size : 158.75mmx158.75mm

Panel Dimensions : 1020*670*30mm

Packing : 31PCS / Pallet

Brand Source : Canadiansolar/Ja/Trina/Longi/Jinko Solar...

Junction Box : IP68, 3 Bypass Diodes

Weight : 8.9kg

Frame : Anodized Aluminium Alloy

Solar Cell : Solar Panel Poly 156*156 Cell

Cable : 4mm2

Frame Color : Color Silvery, Black

Keyworlds : Polycrystalline Solar Panles

Type : Perc / Hbc / Standard Solar Panel

Product Name : Solar Panel

Transport Package : Standard Shipping Package or Customized

Specification : Standard specification or customized

Trademark : HTONETECH

Origin : Beijing, China

Supply Ability : 1000000 Watts Per Week

Shipping Cost : To be negotiated| Freight Cost Calculator

Warranty : 25 Years

Number of Cells : 72pcs

Application : Light Industry

Samples : US$ 10/Piece 1 Piece(Min.Order) |

Contact Now

Product Description

HTONETECH Monocrystalline Silicon Solar Panel Manufacturers 250W Amorphous Silicon Solar Panel China 647X629X252mm Panel Dimensions Polycrystalline Solar Panel

Amorphous Silicon Solar Photovoltaic Panel 158.75mmx158.75mm Cell

High-Efficiency Polycrystalline Solar Panel Module

The solar photovoltaic module adopts a high-efficiency polycrystalline silicon solar module, with module conversion efficiency greater than 15%, a positive tolerance of 0-+3%, a 15-year material and process warranty, and a 25-year linear warranty.

Excellent Warranty Commitment: 25 years power warranty, 0.55% linear power attenuation.

Key Features

- Aluminum Anodized Frame
Our strict requirements for the quality of raw materials make sure that each solar panel is endurable. Each corner of solar panels is equipped with corner protectors which can make our products more safe.

- Multi Busbar Technology
Better light trapping and current collection to improve module power output and reliability.

- Reduced Hot Spot Loss
Optimized electrical design and lower operating current for reduced hot spot loss and better temperature coefficient.

- PID Resistance
Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.

- High Salt Mist and Ammonia Resistance.
Enhanced Mechanical Load

Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal). Certificate

- Certified by SGS, TUV, CE, CQC

MECHANICAL SPECIFICATION
Format	1480mm x 670mm x 30mm
Weight	12.0kg±3%
Cell	36 monocrystalline cells
Junction Box	IP68
Cable	4mm²

Nominal Max. Power (Pmax)	150W	160W	170W
Open Circuit Voltage (Voc)	21.69V	22.19V	22.69V
Short Circuit Current (Isc)	9.21A	9.61A	9.98A
Opt. Operating Voltage (Vmp)	17.80V	18.21V	18.62V
Opt. Operating Current (Imp)	8.43A	8.79A	9.13A
Module Efficiency	15.13%	16.14%	17.14%

MECHANICAL SPECIFICATION
Format	1020mm x 670mm x 30mm
Weight	8.9kg±3%
Cell	36 monocrystalline cells
Junction Box	IP68
Cable	4mm²

Nominal Max. Power (Pmax)	100W
Open Circuit Voltage (Voc)	20.96V
Short Circuit Current (Isc)	6.36A
Opt. Operating Voltage (Vmp)	17.20V
Opt. Operating Current (Imp)	5.82A
Module Efficiency	14.63%

Amorphous Silicon Solar Photovoltaic Panel 158.75mmx158.75mm Cell

1. Q: Are you a factory or a trading company?
A: We are a professional Solar Panels Manufacturer in China

2. How can we guarantee the quality of the product?
A: Always provide the favored buyer with a pre-production sample before mass production; Always test every product before despatching the shipments;

3. What products we can supply you?
A: Solar panels, inverter, controller, cable, support frame, and other solar power systems

4. Q: Can the product's pricing be cheaper?
A: Of course, you will be offered a very good discount with large quantities.

5.. Q: Can print our company's logo on the PV panels?
A: Yes! And we accept OEM&ODM orders.
