IP30 Solar Charge Controller 10A 13.8V Solar Battery Controller

Product Categories

Huatong Yuanhang (Beijing) Technology Development Co., Ltd. （HTONETECH）

Contact Now

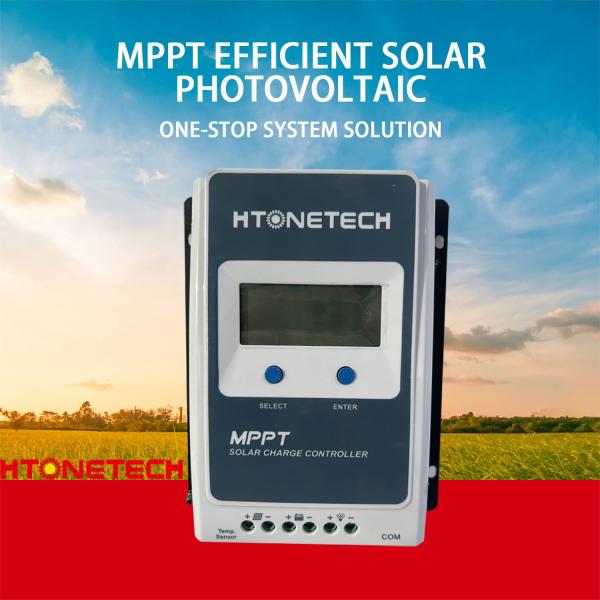

IP30 Solar Charge Controller 10A 13.8V Solar Battery Controller

Certification : ISO, CE

Model NO. : HT-K20-10A MPPT

Application : Solar System Controller, Charger Controller, Lighting Controller, Wind Controller, Solar Working Station, Voltage Controller

Rated Voltage : 12V

Grounding : Positve

Temperature Compensation : -3mv/ºC/2V

Self-Consumption : ≤20mA(12V);≤16mA(24V)

Operating Temperature Range : -25ºC~+45ºC

Rated Charge/Discharge Current : 10A

Protection Degree : IP30

Float Voltage : 13.8V

Low Voltage Disconnect Voltage : 11.1V

Low Voltage Reconnect Voltage : 12.6V

Equalization Charging Voltage : Seal:14.6V,Flooded:14.8V

Boost Voltage : Gel:14.2V. Seal:14.4V.Flooded:14.6V

Battery Input Voltage Range : 8V-32V

Transport Package : Wooden Box

Specification : 252x180x63mm

Trademark : htonetech

Origin : China

Supply Ability : 50000pieces/Year

Shipping Cost : To be negotiated| Freight Cost Calculator

After-sales Service : Yes

Warranty : 5year

Condition : New

Contact Now

IP30 Solar Charge Controller 10A 13.8V Solar Battery Controller

Product Description

A solar charge controller, also known as a solar regulator, is a device used in solar energy systems to regulate and control the charging of batteries from solar panels. Its primary function is to prevent overcharging or overdischarging of the batteries, ensuring optimal charging and extending their lifespan. Here are some key points about solar charge controllers:

Charging regulation: Solar charge controllers monitor the voltage and current from the solar panels and regulate the charging process to ensure the batteries receive the appropriate amount of charge. They prevent overcharging by reducing or stopping the charging current when the battery reaches its maximum voltage level.
Battery protection: Solar charge controllers protect batteries from overdischarging by disconnecting the load from the battery when its voltage drops to a critical level. This prevents damage to the battery and extends its lifespan. Some advanced charge controllers also offer features like temperature compensation to optimize charging based on environmental conditions.
System monitoring: Many solar charge controllers come with built-in monitoring capabilities to display important system parameters such as battery voltage, charging current, solar panel output, and overall system performance. This allows users to keep track of their system's operation and troubleshoot any issues.
Load control: Some solar charge controllers have load control functionality, allowing them to directly power DC loads such as lights, fans, or small appliances. They can automatically turn on or off the connected loads based on the battery's state of charge, ensuring efficient utilization of stored energy.

IP30 Solar Charge Controller 10A 13.8V Solar Battery Controller

SOLAR CHARGE CONTROLLER
Model	HT-K20-10A	HT-K20-20A	HT-K20-30A	HT-K20-40A
Nominal system voltage	12/24V 12/24VDC/Auto
Rated charge/discharge current	10A	20A	30A	40A
Rated load current	10A	20A	30A	40A
Battery input voltage range	8V-32V
Max. PV open circuit voltage	100V(At minimum operating environment temperature),92V(25ºCAt 25°C environment temperature
Max PV input power	12V130W	12V260W	12V390W	12V520W
Max PV input power	24V260W	24V520W	24V780W	24V1040W
Equalization Charging Voltage	seal:14.6V,flooded:14.8V
Boost voltage	Gel:14.2V, seal:14.4V,flooded:14.6V
Float voltage	13.8V
Low voltage reconnect voltage	12.6V
Low voltage disconnect voltage	11.1V
Self-consumption	≤20mA(12V);≤16mA(24V)
Grounding	Positve
Temperature compensation	-3mV/ºC/2V
Dimensions(LxWxH)(mm)	172x139x44mm	220x154x52mm	228x164x55mm	252x180x63mm
Net weight	0.6KG	1.1KG	1.2KG	1.9KG
Protection Degree	IP30
Operating temperature range	-25ºC~+45ºC

FAQ

1. Q: Are you a factory or a trading company?
A :We are a professional Solar Panels Manufacturer in China

2.How can we guarantee the products quality?
A :Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;

3.What products we can supply you?
A :Solar panels,inverter,controller,cable,support frame and other solar power systems

4. Q: Can the products pricing be cheaper?
A :Of course, you will be offered a a very good discount with large quantities.

5.. Q: Can print our company's logo on the pv panels?
A :Yes! And we accept the OEM&ODM orders.
